Selecting the correct Ventoux Road box is a simple process of confirming your bike's dimensions against the box limits. Because road geometries are generally fairly consistent, we offer one primary box length with two different width options to accommodate varying cockpit setups.

Before starting measurement, confirm your bars can turn 101 degrees to the right. If they can't, you'll need to look at an Aubisque which allows you to mount your bike into the box with the bars straight, or a Tourmalet which requires removal of bars.

Step 1: Confirm your wheelbase (Measurement C)

Measurement C is the horizontal distance between the centre of your front axle and the centre of your rear axle. This is your wheelbase.

The Ventoux accommodates a wheelbase between 905 mm and 1055 mm. The internal mounting is fully adjustable within this range, which covers the vast majority of standard road and gravel frames.

Step 2: Choose your width (Measurement D)

To ensure your bike is held securely without the shifters or bars touching the box walls, you need to select the correct width. Measurement D is the distance from the centre of your stem cap to an imaginary line at the furthest point your shifter hoods extend. We need this measurement as your bars turn 101 degrees to the right when mounted in the box.

Choose the Standard width if Measurement D is 270 mm or less. This is suitable for most traditional road setups and integrated cockpits.
Choose the Wide width if Measurement D is over 270 mm. This is specifically designed for bikes with larger bars or longer shifter hoods.

If your measurement is exactly 270 mm, we recommend selecting the Wide option to ensure there is plenty of clearance for your levers.

Additionally, a measurement worth taking but not shown is the width of your bars across the widest point (e.g. bar flares). This should be a maximum of 550 mm - however it's very rare that your bars will exceed this.

Step 3: Verify your height (Measurements A)

These measurements ensure your bike sits comfortably within the box once the lid is closed.

Seat post height (Measurement A): This is the linear distance from the centre of your bottom bracket to the top of your seat tube (NOT including seat post or saddle). The maximum allowable height is 675 mm. If your seat tube is higher than this, or if you have an integrated seat post (ISP) that exceeds this limit, you will need to lower or remove the post for transit, or contact us for a custom heigh upper box section.

Step 4: Check your cockpit-to-axle measurements (Measurements B1 and B2)

Finally, check the cockpit-to-axle measurements to ensure the frame fits within the outer shell.

B1: This is the linear distance from the centre of the front wheel axle to the top cap on the steerer tube. The maximum is 700 mm.
B2: This is the linear distance from the centre of the front wheel axle to the highest point on the stem. The maximum is 675 mm.

Please note: while not shown on the measurement diagram, the width of your bars at the widest point (e.g. across the bar flares) should be no more than 550 mm.

Road & Gravel Bikes

Ventoux Road Bike Box

The premium aluminium bike box for road, gravel, and cyclocross bikes with integrated cockpits. The Ventoux keeps your bars attached and your packing time to five minutes. Big capacity, minimal disassembly, peace of mind when travelling with your bike. Read more

Select Axle Size

Which Size Axles ?

Your Bike Details

Select Wheelbag Size

Which Size Wheelbags ?

Small (for tyre widths up to 42mm)

Large (for tyre widths over 42mm)

Customise Nameplate

What is This? ?

Select Accessories

Specifically designed for Buxumbox compatibility.

Recommended

Ventoux Bike Box Workstand Set

Convert your Ventoux bike box into a fully functioning bike workstand with these two lightweight fittings.

+$155.00

Recommended

AirTag Holder

Buxumbox AirTag holders are firmly riveted to the underside of the box chassis, consisting of a spacer and a cap, all made from laser-cut aluminium with a black anodised finish.

+$34.00

Recommended

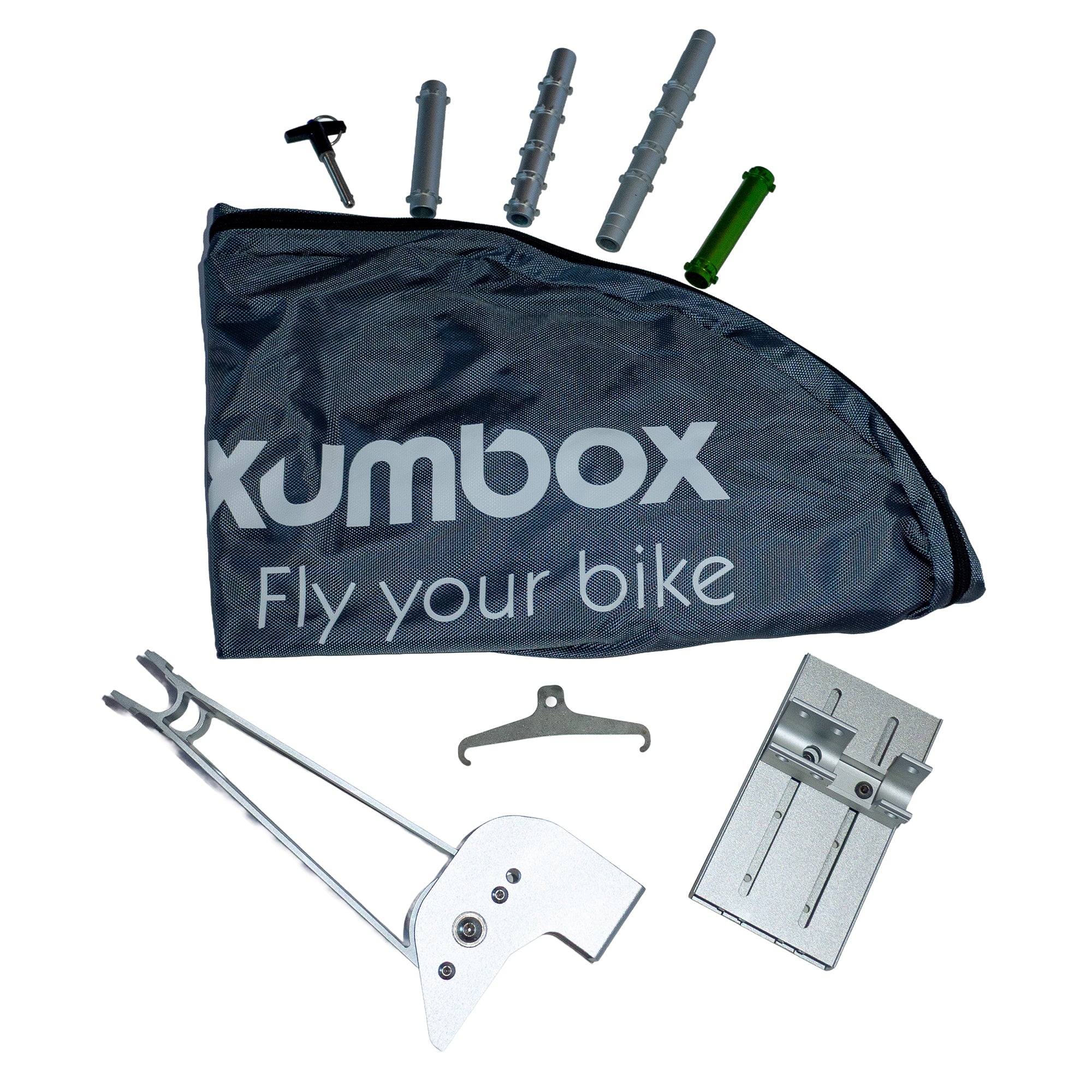

MTB Pack

If you've got a Ventoux Road box and want to use it for your MTB, you'll need our MTB Pack bundle. This comprises an MTB bracket set, 15x100, 15x110, 12x148, 12x157 axles, chain tensioner, and a pair of large wheel bags.

+$135.00

Recommended

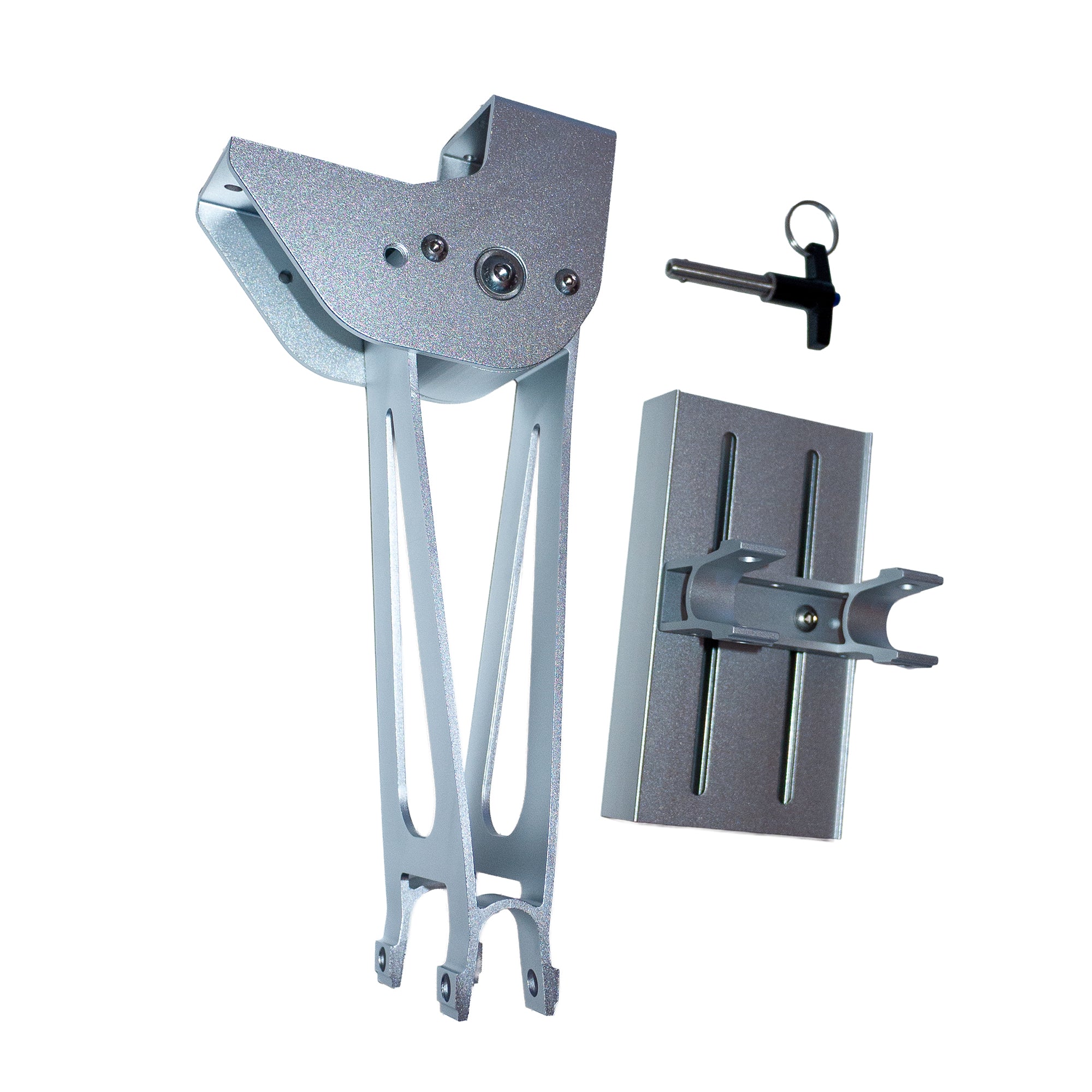

Straight Mount Pack

If you've got a Ventoux Road box and want to use it for a bike such as a track bike or another bike with very limited handlebar rotation, you can use this pack to mount your bike into the box (with cockpit removed). This comprises a straight mount bracket set to install into your box.

+$68.00

Recommended

Touring Pack

The Touring Pack brings together our premium quality helmet and shoe bags, plus additional webbing for your Buxumbox to secure more of your kit for those long cycle touring trips.

+$54.00

Recommended

Custom Decals

Custom single-colour vinyl decals for your Buxumbox. Please send your decals through in SVG format after ordering with placement instructions to info@buxumbox.com.

+$145.00

Select Travel Date Our production time is currently 4-6 weeks. If you have urgent travel plans, please get in touch - we can usually adjust our schedule to accommodate you.

Quick to pack/unpack

Secure closure

Smooth mobility

$1,325.00

Tax included

Trusted Delivery Partners
14 Day Returns
Lifetime Limited Warranty

Specifications Key Features How to Pack

Ventoux Road Bike Box

$1,325.00

Road, gravel, and cyclocross bikes belong in a Ventoux - designed for those with integrated cockpits where removal isawkward, time-consuming, or simply inadvisable.

Remove the wheels and seatpost, and you're done. Five minutes. Bars stay on.

For larger or more complex builds, there's no better solution. The Ventoux is hand-built in the UK from 6061-T6 aluminium - a box engineered to last a cycling lifetime, not a few race seasons. Precision mounting brackets hold your frame securely without foam or padding. TSA-approved key locks mean airport inspections happen without forced locks or a damaged box.

Four inline skate wheels with sealed bearings make it one-handed to move through airports. Rear wheels are fixed, while castering front wheels give precise control when fully loaded.

Compatible with all thru-axle sizes and quick release hubs. External dimensions: 134 × 87 × 36 cm (52.6 × 34.2 × 14.2") in the standard width option and weighs in at 15 kg. For stems over 270 mm horizontal from stem cap to the forward-most point of the shifter, the Wide option measures 134 × 87 × 41 cm (52.6 × 34.2 × 16.2") and weighs 15.5 kg. See which Which Size? link in the Bike Box Size menu for more information on how to measure your bike to decide which size is right for you.

Need MTB versatility? Switch the front and rear mounting brackets with the MTB Pack - available as an accessory - and the Ventoux converts for mountain bike use.

Please note: fork and handlebars must be able to turn 101 degrees to the right to enable fitting without disassembly.

Available in Pavé Grey or our Enhanced Powder Coat Finish in a huge choice of colours.

Weight	Standard: 15 kg (33.2 lb) Wide: 15.5 kg (34.1 lb)
Dimensions (L x H x D)	Standard: 134 x 87 x 36 cm (52.8 x 34.3 x 14.2") Wide: 134 x 87 x 41 cm (52.8 x 34.3 x 16.1")
Suitable for	Road, Gravel, Track & Cyclocross bikes (optional MTB kit available)
Disassembly required	Wheels, seatpost
Pack/unpack time	5 min/5 min
Latches	4
Handles	4
Wheels	2 fixed, 2 caster
Accessories included	Wheelbags, anti-crush bar, axle fittings
Lead-time	Typically 4-6 weeks (including air-shipment)

Weight

Standard: 15 kg (33.2 lb)

Wide: 15.5 kg (34.1 lb)

Dimensions (L x H x D)

Standard: 134 x 87 x 36 cm (52.8 x 34.3 x 14.2")

Wide: 134 x 87 x 41 cm (52.8 x 34.3 x 16.1")

Suitable for

Road, Gravel, Track & Cyclocross bikes (optional MTB kit available)

Disassembly required

Wheels, seatpost

Pack/unpack time

5 min/5 min

Latches

Handles

Wheels

2 fixed, 2 caster

Accessories included

Wheelbags, anti-crush bar, axle fittings

Lead-time

Typically 4-6 weeks (including air-shipment)

Prefer to watch videos? Watch the Ventoux packing guide here.

Prepare bike: Engage top gear. Remove wheels and deflate tyres. Remove seat post.
Prepare box: Open box, remove Anti-Crush Bar and wheel bags. Slide Rear Axle Mount to forward-most point on carrier.
Place saddle/seat-post under webbing in base of box.
For thru-axle bikes, attach Dummy Hubs (castellated aluminium tubes) to front and rear dropouts of bike using the bike’s own thru-axle skewers – note that the chain runs over the top of the Dummy Hub to maintain tension in the chain (not applicable for bikes with QR hubs).
Load frame to box. Cranks horizontal, right-hand crank forward.
- For bikes with thru-axle hubs: Drop front Dummy Hub in to the cradle on Front Axle Mount – secure by inserting Thru-axle Retaining Pin through hole in Front axle mount. Then slide Rear Axle Mount backwards until rear Dummy Hub can be dropped in to Rear Axle Mount – secure with two Thru-axle Retaining Pins. Note: there will be some movement in the Front-Axle Mount – this is accommodate a range of head-tube angles and fork rakes.
- For bikes with QR hubs: Insert front dropouts in Front Axle Mount and tighten quick release as you would on the bike (as with a bike, quick release may need adjustment to accommodate lawyer tabs). Manoeuvre rear end of bike such chain is over Rear Axle Mount. Slide Rear Axle Mount backwards to engage with rear dropouts. Tighten quick release as you would on the bike. Note: there will be some movement in the Front-Axle Mount – this is accommodate a range of head-tube angles and fork rakes.
Place wheels in wheel bags. Load wheelbags to box, one each side on frame – on right side (looking from rear of box) located forward and on left side located rearward. The slots in the wheelbags should be oriented horizontally and adjacent as shown in photo.
Insert Anti-Crush Bar through slots in wheel bag and locate ends in one of three locations in Anti-Crush Retainer (note that you should use same location point on left and right side). If your Anti-Crush Bar has the button release function, pull the button down and across to release, and to the right and forward to engage with the retainer.
Load any other items (e.g. helmet, shoes, track pump) to spare space in box (these should be housed in suitably protective bags to prevent damage during transit).
Manoeuvre box lid over box base, taking care to ensure lid is correctly oriented by aligning two green extrusions on front edges. Check that upper and lower edges are positively engaged on all four sides of box.
Engage and tighten four latches by turning handle through 90 degrees.
If required, secure case by locking the two TSA-approved lock fittings (one on each side of box).
You’re all done – safe travels!

Key Features

Strength you can trust

Engineered aluminium mounting brackets hold the frame securely in the box without the need for foam or padding, all protected by our aerospace-grade 6061 aluminium panels and extrusions.

Fast to pack & unpack

We've designed our boxes to be simple and straightforward to pack and unpack, saving you time and effort. Bikes can be packed/unpacked in ten minutes or less.

Secure closure

TSA-compliant locks allow security checks without damaging the box, and the lid opens cleanly without disturbing the bike inside.

Smooth mobility

Four inline skate wheels with sealed bearings make for smooth rolling through airports. Rear wheels are fixed, front wheels are castering for easy control, even when fully loaded.

W h a t o u r c u s t o m e r s s a y

"As good as you can get! They shipped rapidly so my box came in time for an upcoming trip and communication was great on WhatsApp. The box is as good as you can get for protection and can be packed in less than 5 minutes."

Josh

VERIFIED USER

Ventoux Road Bike Box

$1,325.00

"Seamless delivery to the US. Aubisque box is large, but easy to pack and unpack. Box did great in my first trip to Spain. No issues with airline check-in."

Eduardo

VERIFIED USER

Aubisque Aero & TT Bike Box

$1,575.00

"Great boxes, great service, a little gem of a company with a wonderful product. Simple concept, wonderful design and much better than anything else out there."

Lloyd

VERIFIED USER

Ventoux Road Bike Box

$1,325.00

"Great company to work with. Box is built very well. Great design and engineering. The best protection a bike can get."

Mike

VERIFIED USER

Aubisque Aero & TT Bike Box

$1,575.00

"It's without a doubt the best bike box on the market - packs up quickly, looks nice, and most importantly, it protects my precious Canyon race bike on trains and airplanes. Highly recommend!"

Justin

VERIFIED USER

Ventoux Road Bike Box

$1,325.00

"The product is insane, quality and detail spot on, it's like a Rimowa for my bicycle! I love it, and dealing with the team was easy and smooth."

David

VERIFIED USER

Ventoux Road Bike Box

$1,325.00

"Buxumboxes are just fantastic. A great piece of engineering and a great team. My Tourmalet case has been put through the test of airline baggage handlers and continues to come through like a champ."

Keith

VERIFIED USER

Tourmalet Road Bike Box

$1,155.00

"Super responsive and was able to deliver my new Buxumbox to me in time for an upcoming trip. High quality and protects a bike like none other. Should be the industry standard for bike travel."

Jeff

VERIFIED USER

Ventoux Road Bike Box

$1,325.00

"The Rolls Royce of bike boxes, guaranteed to generate bike box envy amongst plastic and soft bag users. Compared to previous Bike Box Alan, offers better protection and minimal bike disassembly."

Russ

VERIFIED USER

Ventoux Road Bike Box

$1,325.00

Our boxes come with a lifetime limited warranty

We're so confident in our boxes, we warranty them for life. Built from the ground up for cyclists who travel seriously, Buxumbox combines exceptional strength with effortless usability - trip after trip, year after year.

Other riders also bought

No products found

Frequently Asked Questions

Will my bike fit in? What box do I need?

We have all the bases covered – there are four distinct models according to your type of bike and preference for size vs pack time. On each of the product pages there are measurement guides for each box to help you pick a size.

The Aubisque is our dedicated aero road, triathlon and time trial bike box. It’s been designed for bikes with integrated cockpits that can’t be disassembled easily.

The Ventoux will also accommodate seat tubes up to 635mm, covering many ISPs – and for giants, we can produce extended height versions on a build-to-order basis.

The Stelvio is our MTB box, with standard size for XC and trail bikes or long wheelbase option for big hitter downhill/enduro bikes.

The Tourmalet is our most compact box, requiring most disassembly (handlebars need to be removed). But it is the smallest and therefore lightest.

We’d always recommend using the smallest box the bike can fit in to – for that reason we even provide three height options for the compact Tourmalet model.

How long will it take to build my box?

Our lead times are typically 4-6 weeks from placing your order to your order being ready to ship. The reason we ask for a travel date is to ensure we don't take orders that we can't get customers in time to avoid disappointment. We can sometimes flex this and prioritise extremely urgent orders, so please just ask us if this is the case.

How long will it take for my box to arrive?

Typical delivery times following the initial 4-6 build lead time:

UK: 48 hours
EU: 4-5 days
US: 7-10 days
ROW: 7-10 days

We only use trusted, high quality shipping partners in FedEx and DHL.

Why aluminium?

It’s a wonderful sustainable material – extremely strong in the grades we use (mainly 6061, as used on high-end frames and in aerospace applications), light weight (panels are just 0.5mm thick), versatile (we use it as sheet, extrusions, turnings and stampings) corrosion resistant and eminently recyclable. And oh, it looks good too! Plus, we an offer an amazing range of powder coat colours too.

Will it dent or scratch?

Yes it will, but only in a good way. And that’s also what makes aluminium such a great material – each cycling journey will add a patina of use and earn the odd distinctive scar but without impacting strength or structure. We like to think we look better with age.

Of course, no material is indestructible and there is always a balance to be struck between strength and weight. If a panel is breached due to, for instance, wilful neglect on the part of a baggage handler then it would not spell the end for your box – panel repair/replacement is straightforward and supported by the factory.

Our experience is that a Buxumbox can take far more abuse than moulded plastic or semi-rigid boxes (and is repairable too!)

I hate packing - please tell me that packing your boxes is painless?

It’s painless. In fact, making these boxes simple to use, highly versatile and quick to pack is a design fundamental. You don’t need a degree in applied mental gymnastics here – we’re all about these boxes being intuitive to use. The Tourmalet takes less than ten minutes to pack or unpack and the Ventoux under five minutes, with the absolute minimum of disassembly required.

Will airlines charge for a bike box?

Probably yes, but that's true of every bike box on the market, but policies vary by airline. The good news is that there is a trend by airlines to offer transparent pricing polices for items of Sporting Goods rather than simply applying excess baggage rules.

You can normally find policies and rates by searching for Sporting Goods or Bicycles on your airline’s website.

Can you produce custom boxes?

Yes – within certain physical limits and the limits of physics! As well as producing custom sizes and hardware features for large or unusual bikes (even tandems), we can provide custom decals and logos – for an individual individual or a club/team.

The most popular customisation feature is to have the box powder-coated in a colour of the customer’s choice – examples of recent production can be found on our blog page and Facebook.
